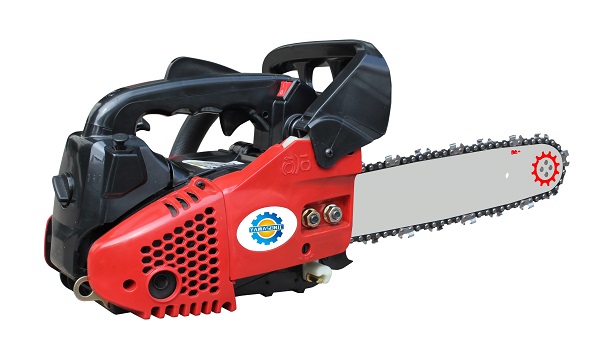

Model No. YGCS2500
Power unit:
Displacement ········································································· 25.4cm3
Maximum engine power ···························································· 0.7kW
Maximum speed ······························································· 12000 r/min
Speed at idling ·····························································3000±500 r/min
Fuel Mixture Ratio(Petrol E10: Two-cycle oil ) ······························40:1
Fuel tank capacity ····························································· 230ml(40:1)
Chain oil ························································· Motor oil SAE #10W-30
Oil tank capacity ········································································· 160ml
Carburetor ·································································· Diaphragm type
lgnition system ··································································· Solid-state
Spark plug ···································································· NHSP L8RTF
Oil feeding system ······································ Mechanical plunger pump
Sprocket : Pitch – No. of teeth ···························· 3/8in(9.525mm) – 6T
Dry weight (without guide bar and chain, empty tanks) ···············3.0 kg
Values for sound pressure level at operator position ·············· 100dB(A), KwA=3dB(A)
Values for sound power level ········· ········ ········ ········ ······· ··· 113dB(A)
according to noise directive 2000/14/EC
Value for vibration (for each handle)
·······························afront_hv, eq: 7,5 m/s2, K=1.5;
······························arear_hv, eq: 7,5 m/s2, K=1.5;
Cutting attachment:
Guide bar: Type – Size ·································· Kangxin AP12-44-509P
Cutting length (usable cutting lengths) ····································· 260mm
Saw chain: Type – Pitch – Gauge ·
······· Kangxin ALP-50 3/8-LP-44– 3/8(9.525) – 0.050(1.27) inch (mm)
